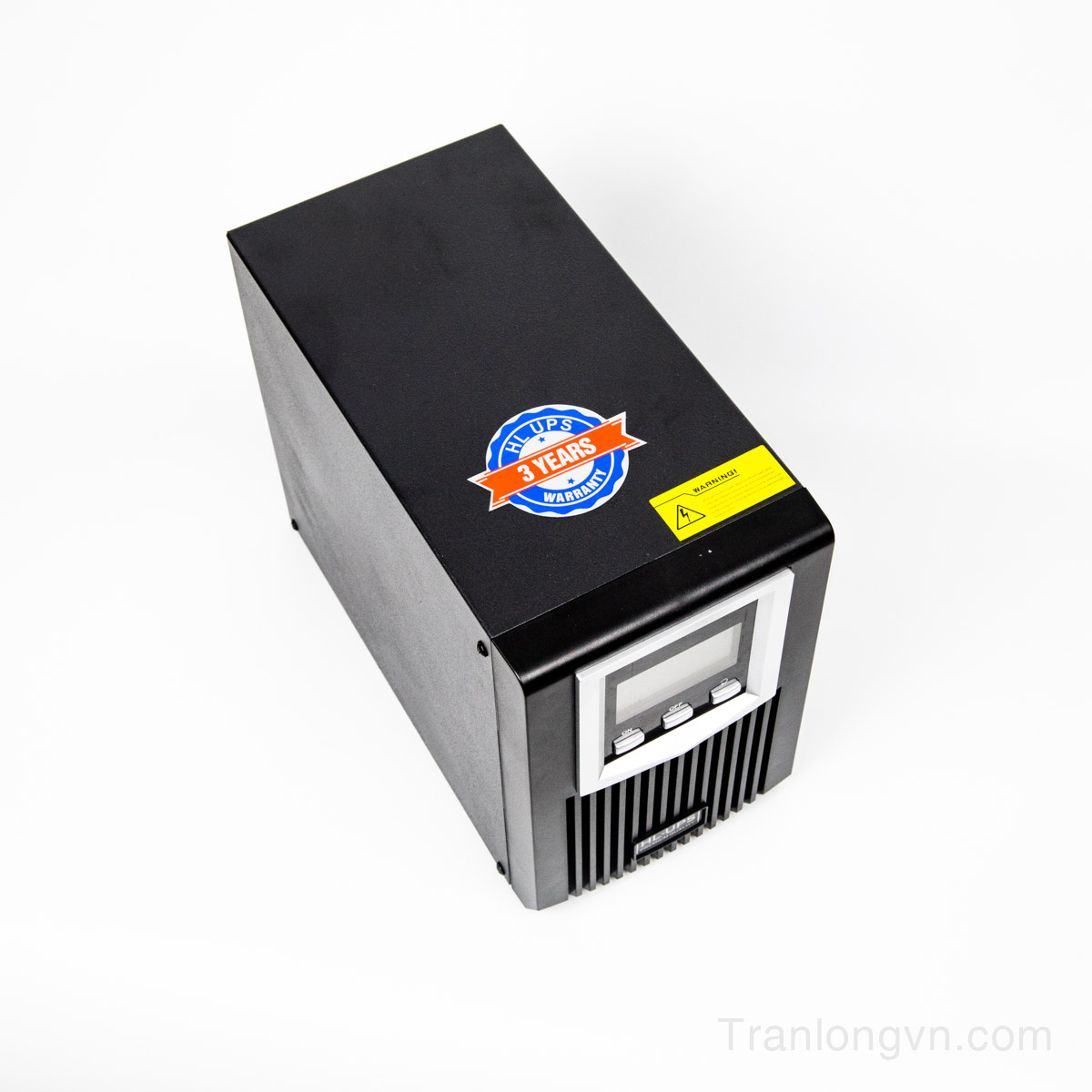

UPS Online HL-2K/1800w

UPS Online HL-2K/1800w
Tên sản phẩm : UPS Online HL-2K/1800w
Mã sản phẩm : HL#204
Danh mục : BỘ LƯU ĐIỆN UPS - UPS HL
Giá : liên hệ
Chi tiết sản phẩm



UPS MODEL     HL-2K
PHASE Single phase with ground
Capacity (VA/Watts)   2000VA/1800W
In put
Normal Voltage 100VAC - 300VAC
Frequency Range 40HZ - 70HZ
Power factor >= 0.99%load (Nominal Input Voltage)
Bypass voltage range Bypass high voltage point
For 200/208/220/230/240 VAC models:
230-264: setting the high voltage point in LCD from 230Vac to 264Vac (Default:264Vac)
For 100/110/115/120/127 VAC models:
115-132: setting the high voltage point in parameter 3 from 115Vac to 132Vac (Default:132Vac)
Bypass low voltage point

For 200/208/220/230/240 VAC models:
170-220: setting the low voltage point in LCD from 170Vac to 220Vac (Default: 170Vac)
For 100/110/115/120/127 VAC models:
95-110:  setting the low voltage point in parameter 3from 95Vac to 110Vac (Default:95Vac)
ECO range Same as bypass
Generator input Support
Out Put
Voltage 200/208/220/230/240VAC (Output can be adjustable)
Frequency  AC mode in sync with AC(45-55)HZ battery mode(50/60HZ)
Power factor 0.9
Voltage regulation ±2%(Batt. Mode)
OutPut waveform Pure sine wave
Crest factor 3ꓽ1
Harmonic distortion linear load<= 3% non-linear<= 6%
Transfer time Zero second transfer
Overload capacity 105%-110%:battery mode 10mins shutdown, AC mode 10mins transfer to bypass mode
110%-130%:battery mode 1mins shutdown, AC mode 1mins transfer to bypass mode
>130%:battery mode 3seconds shutdown, AC mode 1second transfer to bypass mode
Efficiency
AC mode   >89%
Battery mode   >87%
Battery
Battery Type     12V9AH
Numbers     4
Backup time Long run unit depends on the capacity of external batteries
Typical recharge time 4 hours recover to 90% capacity (Typical)
Rated voltage     48VDC
Charging voltage     54.7VDC
Charging Current     1A
Temperature ᵒC- 40ᵒC
Humidity 0 - 90%(Non-condensate)
Noise <50db
Altitude <1500m
PHYSICAL
Dimensions   W190*H328*D397mm
Net weight(Kg)     17.5
Safety standard IEC/EN62040-1, IEC/EN60950-1
EMC IEC/EN62040-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
