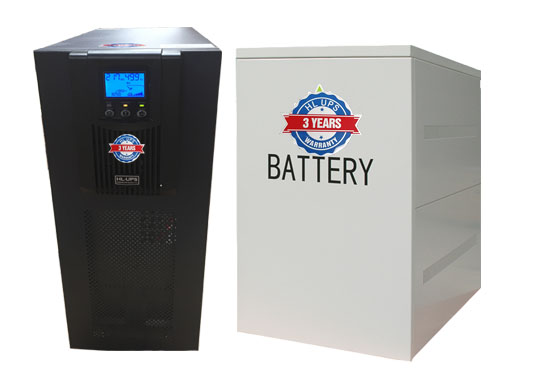

UPS online HL-6KS/4800w

UPS online HL-6KS/4800w
Tên sản phẩm : UPS online HL-6KS/4800w
Mã sản phẩm : HL#209
Danh mục : BỘ LƯU ĐIỆN UPS - UPS HL
Giá : liên hệ
Chi tiết sản phẩm
UPS MODEL   HL-6KS
Rated capacity 6KVA/4.8KW
INPUT
Wire method Single phrase with ground
Rated voltage 220VAC
Normal Voltage 120VAC - 275VAC ±5
Rated Freq 50HZ
Frequency Range (45- 55)HZ±0.5HZ
Bypass range 187VAC-264VAC
BAT
Battery Type   depends on
the capacity
 of external
 batteries

Numbers 16
Backup time Long run unit depends on the capacity of external batteries
Typical recharge time 8 hours recover to 90% capacity (Typical)
Rated voltage 192VDC
Charing voltage 219VDC
Charing Current   12A
AC OUTPUT
Output system Single phrase & earth ground
OutPut voltage 220VAC±3%
Output frequency 50HZ±1%
Dynamic voltage transient range <5%
Dynamic transient restore <60ms
Waveform Sine ware THD<3%(linear load) Sine ware TDH<8%(nonlinear load)
Input power factor 0.8
Overload capability 105%-125% 30s to Bypass
Communications RS232(turn to 485), Intelligelt slot
Physical
Dimensions W240*H500*D460mm
Weight(kg)   20.5
Environmental
Ambient temperature ­10ᵒC - +40ᵒC
Altiude Lower than 1000m: no derating Over 1000m: 1% derating for every 100m rise
Storage temperature ­15ᵒC - + 45ᵒC
