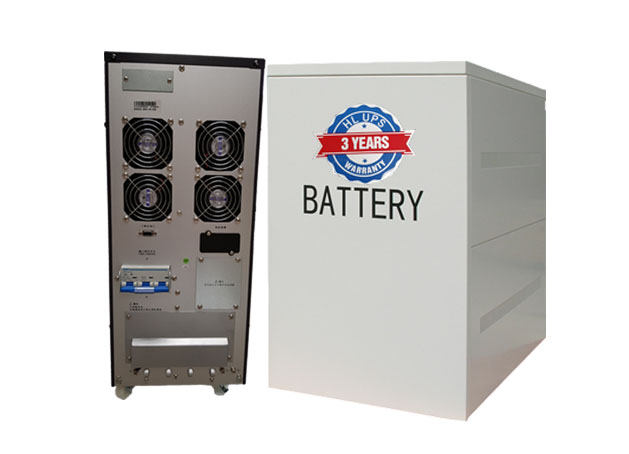

UPS online HL-3C15K/12000w
 |
|
Chi tiết sản phẩm
| UPS MODEL | HL-3C15KS | |||||
| Rated capacity | 15KVA/12KW | |||||
| INPUT | ||||||
| Wire method | three phase earth ground | |||||
| Rated voltage | 380VAC | |||||
| Normal Voltage | 120VAC - 275VAC ±5 | |||||
| Rated Freq | 50HZ | |||||
| Frequency Range | (45- 55)HZ±0.5HZ | |||||
| Bypass range | 187VAC-264VAC | |||||
| BAT | ||||||
| Battery Type |
depends on the capacity of external batteries |
|||||
| Numbers | 16 | |||||
| Backup time | Long run unit depends on the capacity of external batteries | |||||
| Typical recharge time | 8 hours recover to 90% capacity (Typical) | |||||
| Rated voltage | 192VDC | |||||
| Charing voltage | 219VDC | |||||
| Charing Current | 12A | |||||
| AC OUTPUT | ||||||
| Output system | Single phrase & earth ground | |||||
| OutPut voltage | 220VAC±3% | |||||
| Output frequency | 50HZ±1% | |||||
| Dynamic voltage transient range | <5% | |||||
| Dynamic transient restore | <60ms | |||||
| Waveform | Sine ware THD<3%(linear load) Sine ware TDH<8%(nonlinear load) | |||||
| Input power factor | 0.8 | |||||
| Overload capability | 105%-125% 30s to Bypass | |||||
| Communications | RS232(turn to 485), Intelligelt slot | |||||
| Physical | ||||||
| Dimensions | W248*H500*D616 | |||||
| Weight(kg) | 35 | |||||
| Environmental | ||||||
| Ambient temperature | 10ᵒC - +40ᵒC | |||||
| Altiude | Lower than 1000m: no derating Over 1000m: 1% derating for every 100m rise | |||||
| Storage temperature | 15ᵒC - + 45ᵒC | |||||
